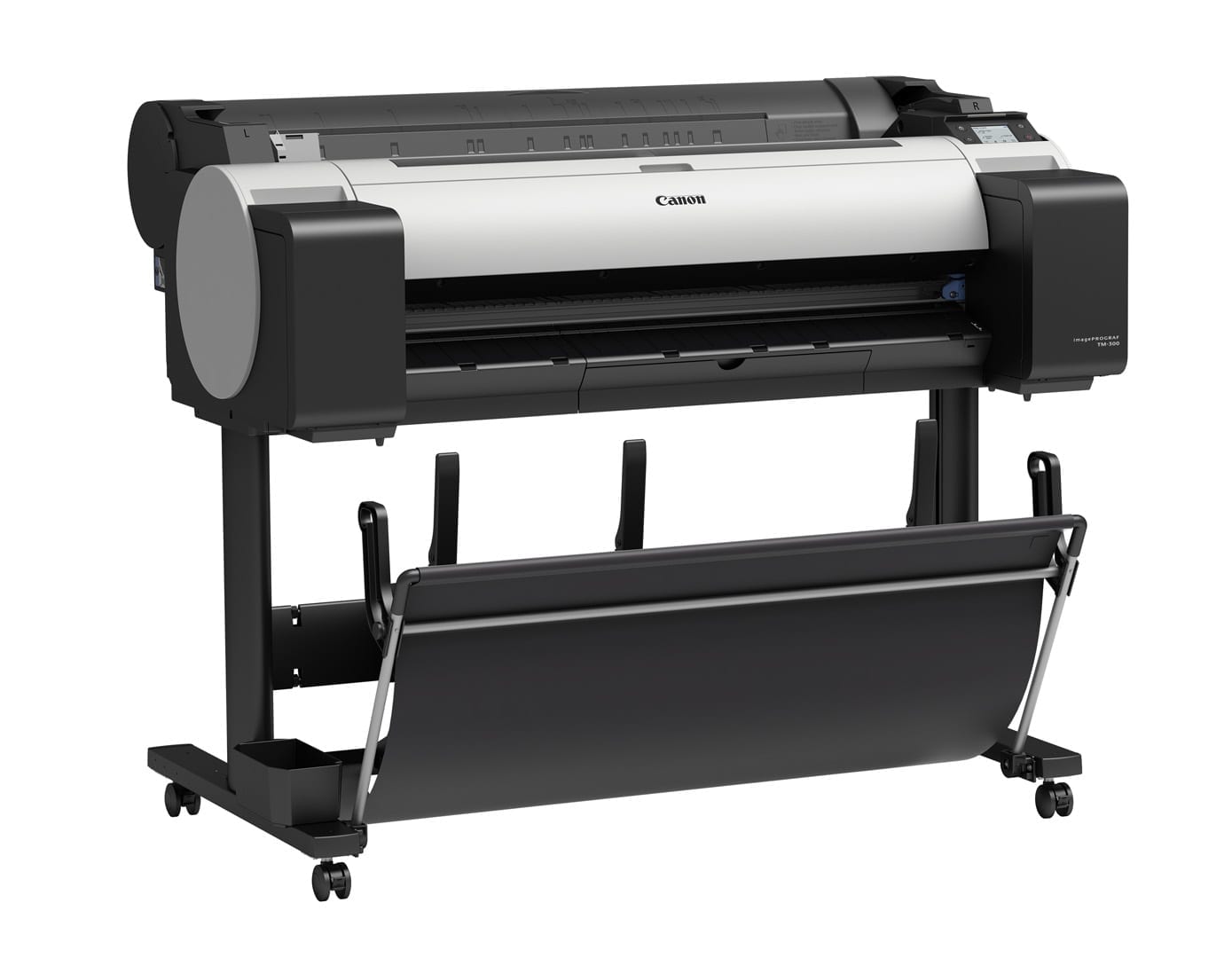

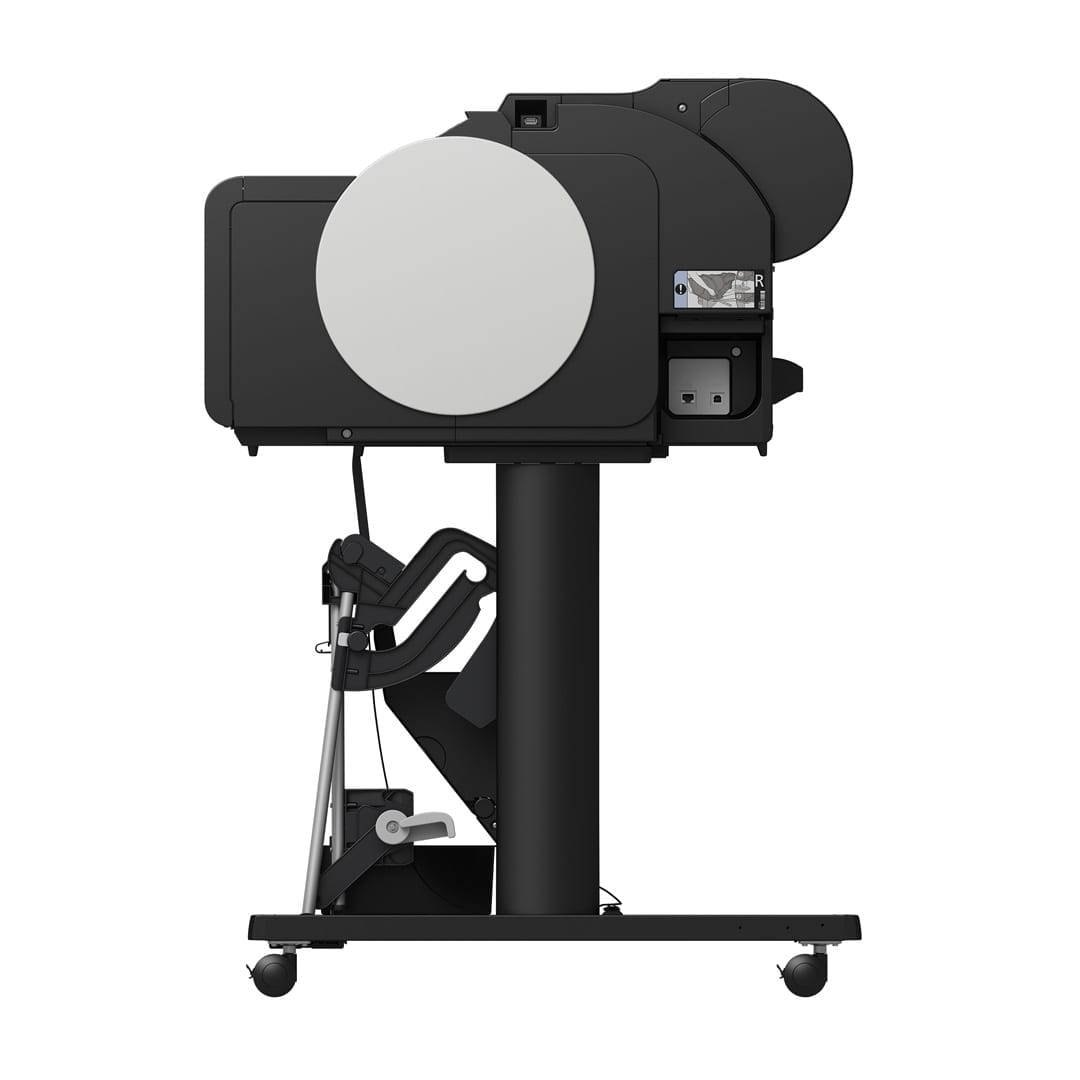

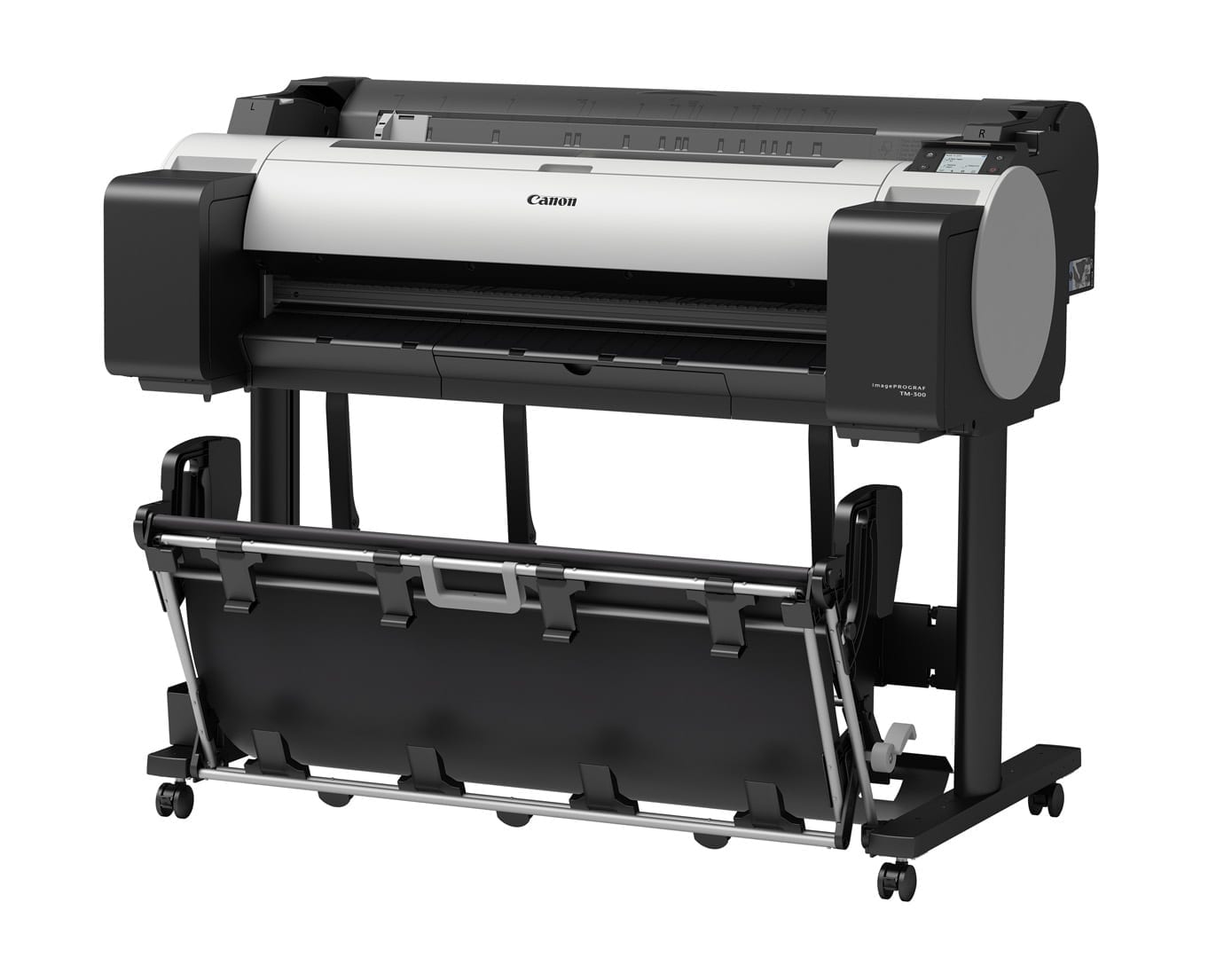

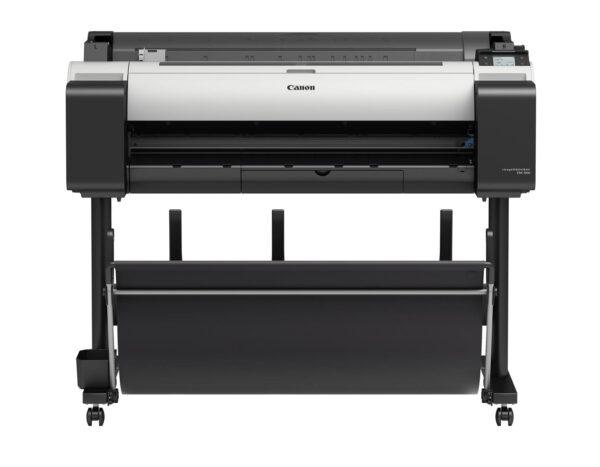

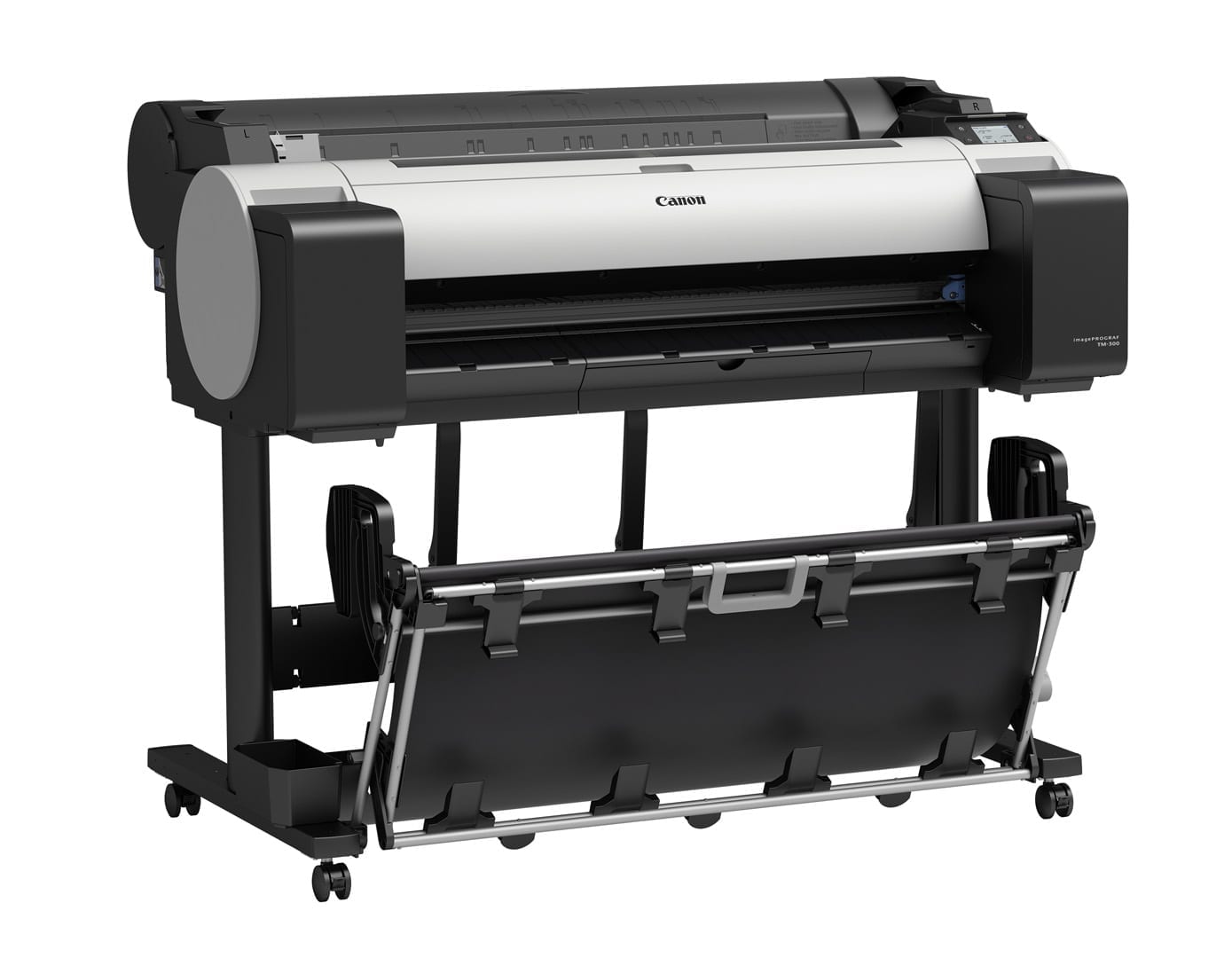

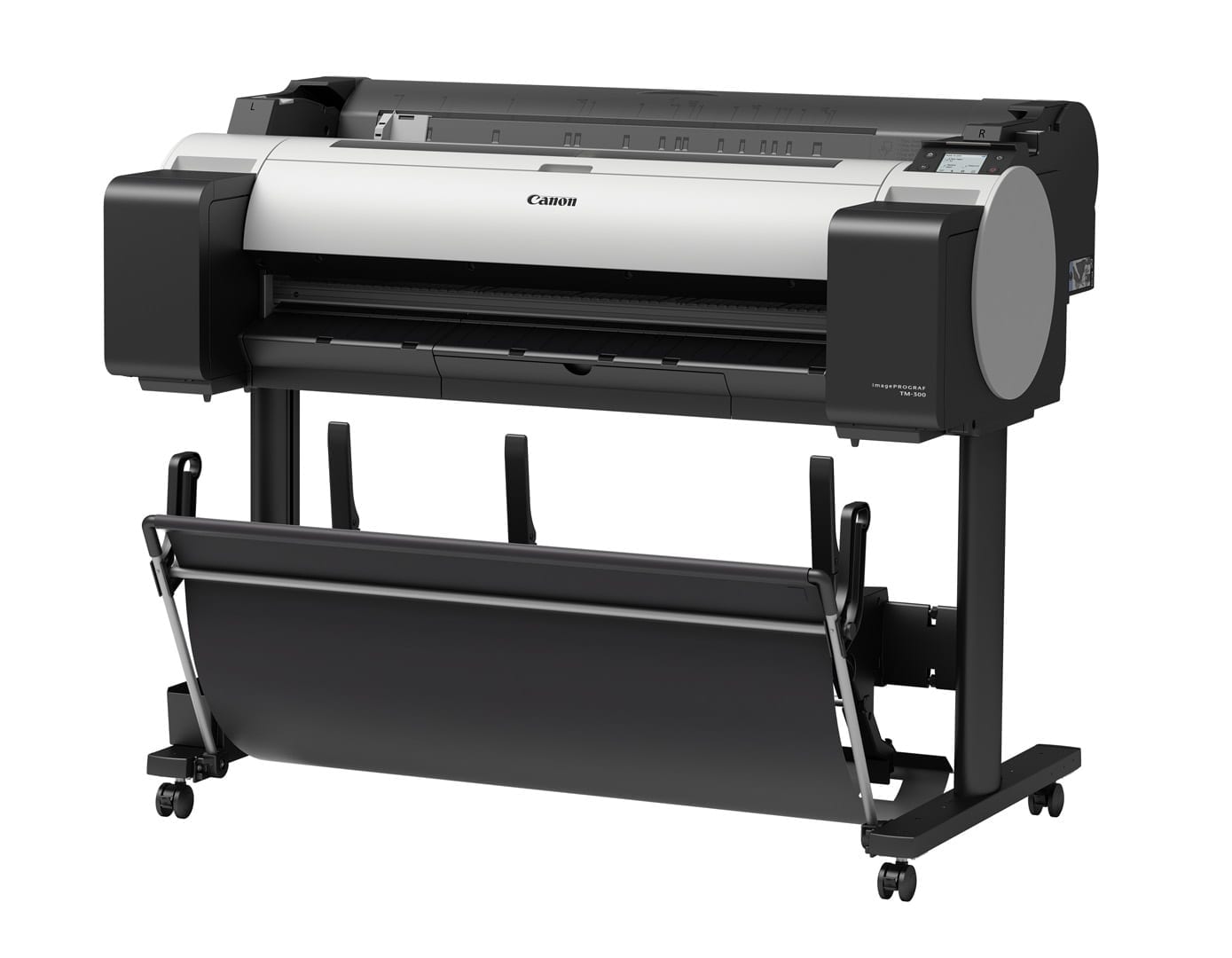

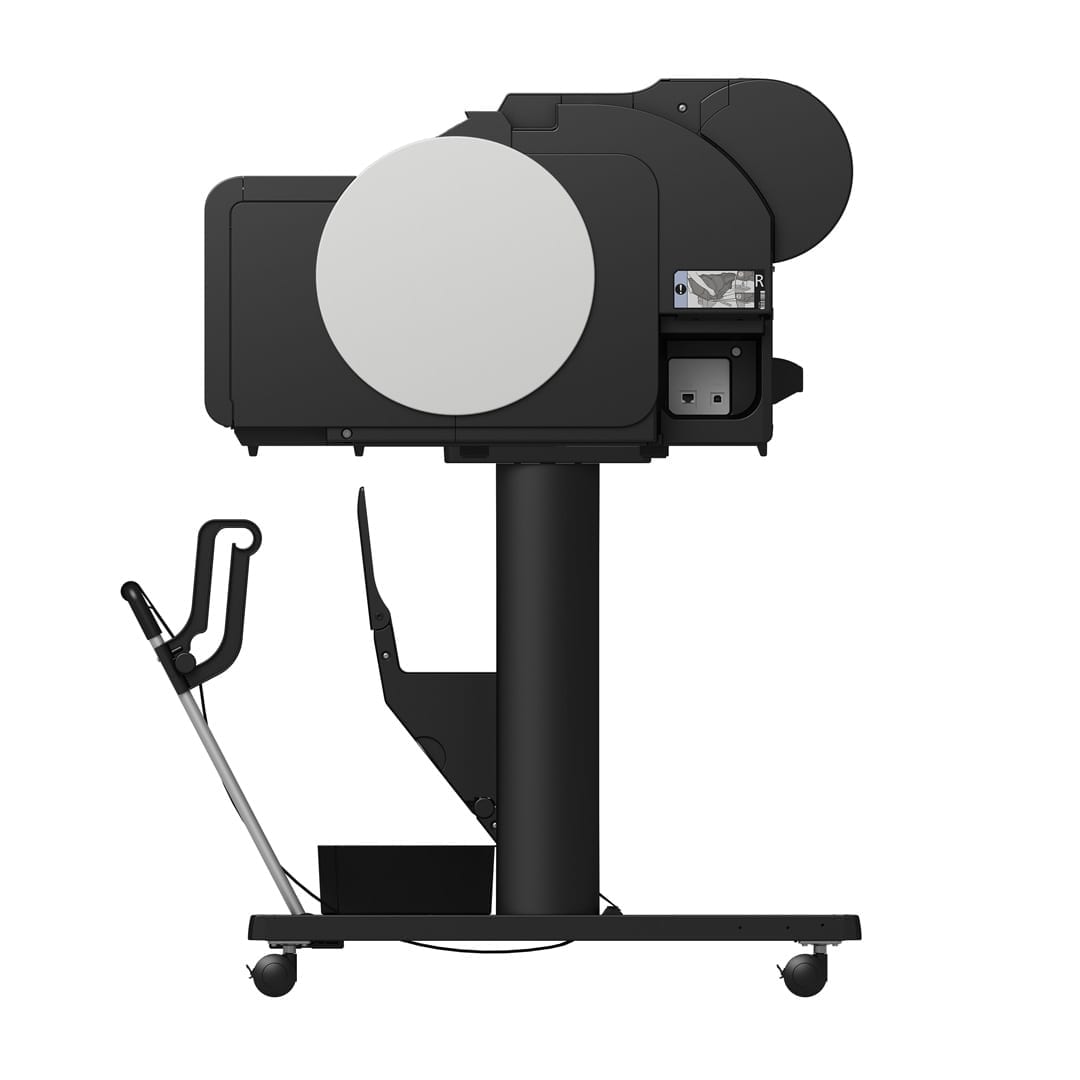

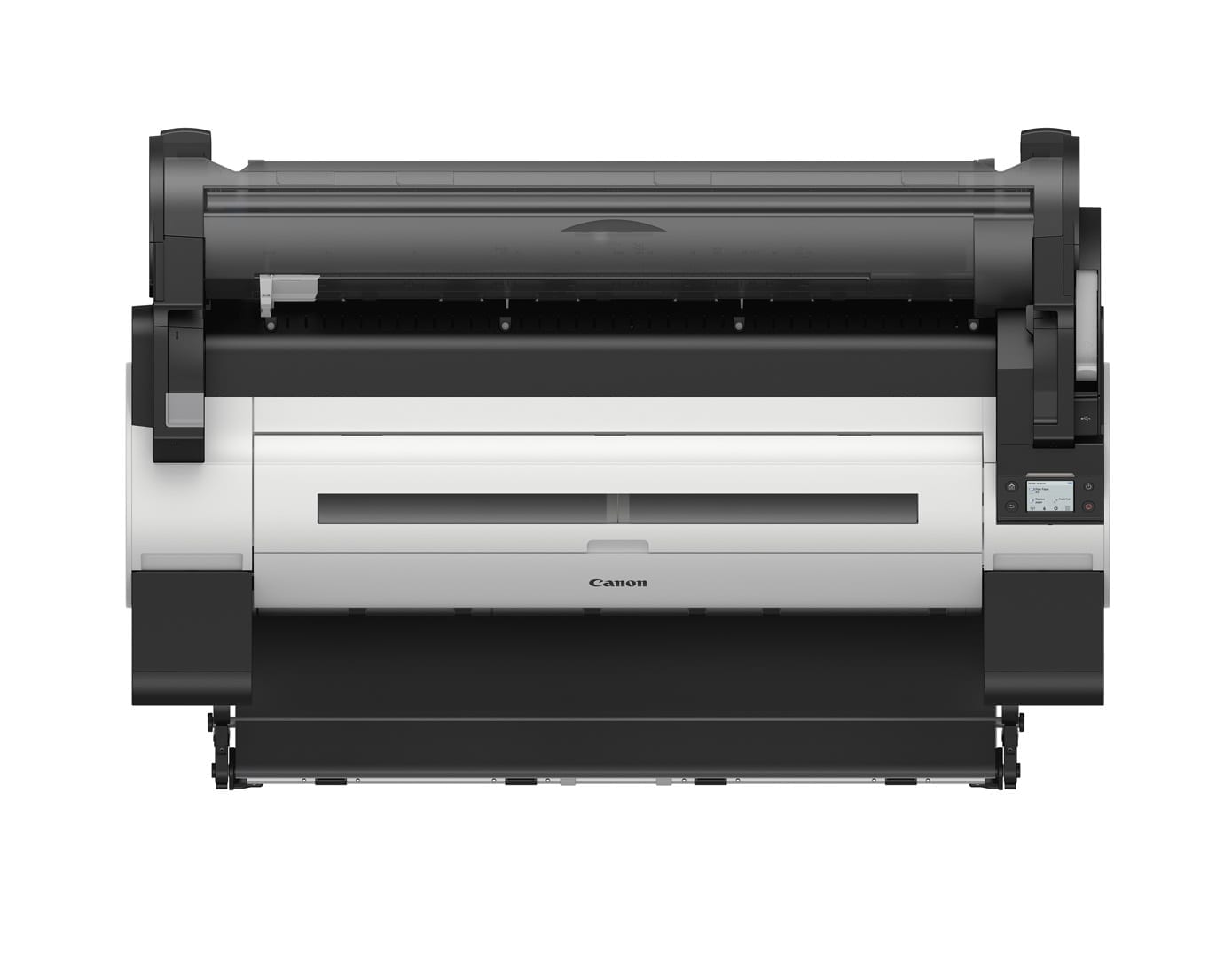

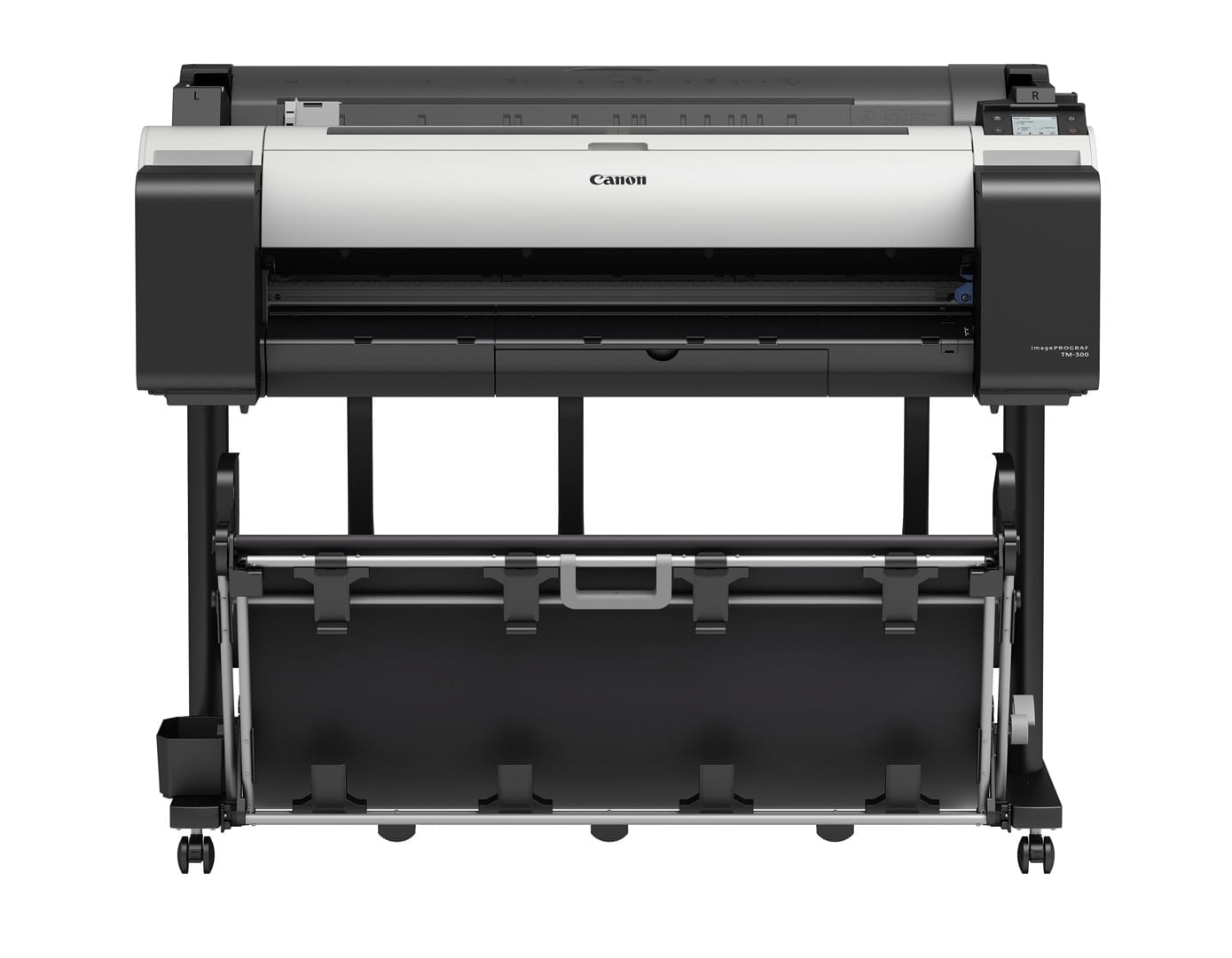

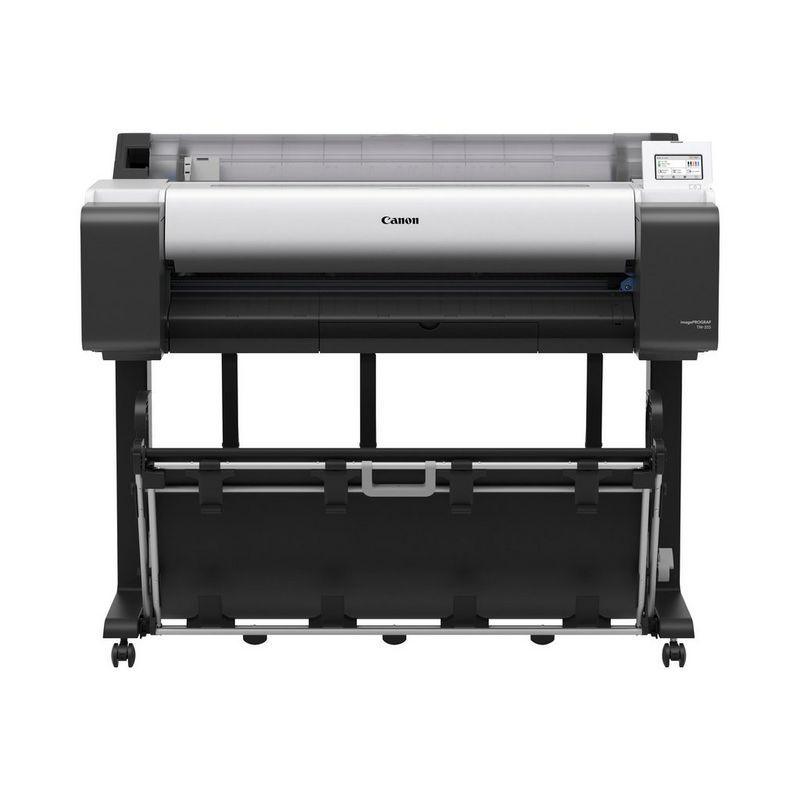

Canon imagePROGRAF TM-300
Canon has redefined the capabilities of a large-format printer with the introduction of the imagePROGRAF TM-300 36″, all in an office friendly printer that’s up to 60% quieter than previous imagePROGRAF printers.
The TM Series is redefining what a Large-format printer is capable of. The TM-300 printer is not only ideal for printing technical documents, CAD drawings and GIS maps, but also posters, signage and displays with the use of Canon’s LUCIA TD water resistant pigment ink. Built with Canon developed technologies the TM-300 has a 5-color LUCIA TD pigment ink, PF-06 print head, L-COA PRO image processor, along with a clear, intuitive operation panel and is nearly 60% quieter than previous models – Plus there is a host of creative workflow software included.
Newly developed for this series is Free Layout Plus, a print utility that allows users to tile nest and creates custom layouts before printing. Direct Print & Share, Canon’s cloud portal software, has newly added features as does Canon’s poster creation software, PosterArtist Lite making this printer an easy choice for the architectural, engineering and construction industries as well as office environments.
- TD Pigment Ink
- Fast Print Speeds

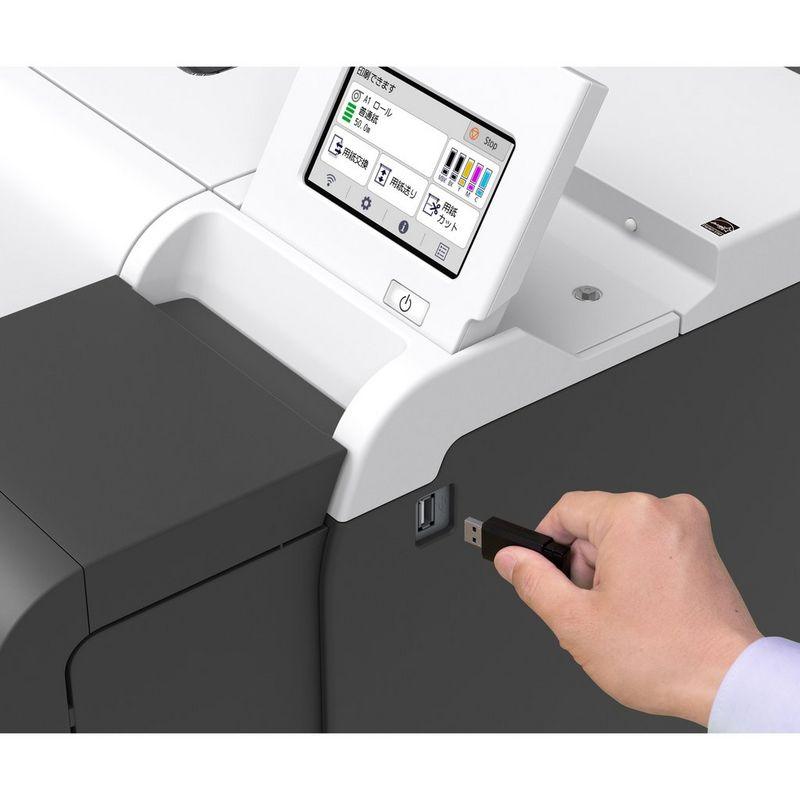

- Direct USB Thumb Drive Printing
- Wi-Fi® Printing
- Small Footprint
- Security Features
- Quiet Operation
- Touch Screen Pane

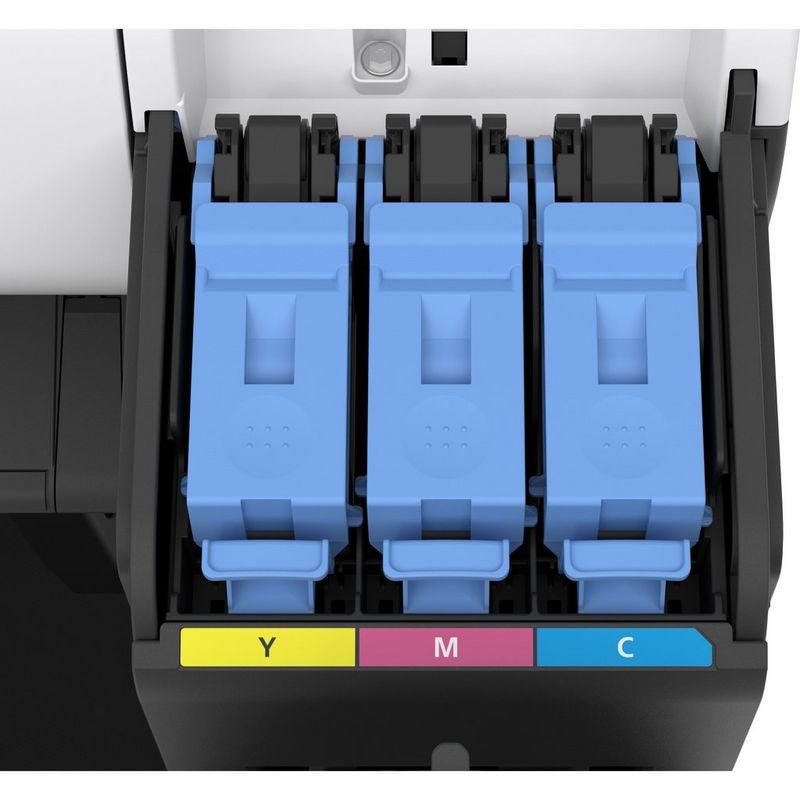

LUCIA TD Pigment Ink Set
The TM-300 device features an all-new 5-color TD pigment ink set. This ink was formulated to produce fine lines and sharp text on both inkjet and non-inkjet paper. Combine this pigment ink with water resistant media and you have a printed drawing that can withstand many outdoor conditions, especially outdoor job sites such as construction sites. Available in 130 ml or 300 ml ink tanks. 490 ml of ink ships standard with the TM-300.
Fast Printing
With faster printing of multipage files, the TM Series can print up to 144 D sized prints per hour
Security Features
The Canon imagePrograf TM-300 Printer Series large-format printers come equipped with several security features designed to help prevent leaks of confidential information:
Secure Communication
- 802.1x Authentication
- SNMPv3
- SSL/TLS
- IPSec
Functionality Restrictions
- Panel Lock by Remote UI
- Remote UI Multilevel
- Hide IP From Panel
- Panel Access Control
- Job Storage and PIN Printing
Secure Storage
Secure Disc Erase (Conforms to U.S. Department of Defense standard DoD5220.22-M)
The following functions can be disabled in administrator mode:
- Direct USB Thumb Drive Printing
- Internet Connection
- FTP and Telnet communication protocols
- Job Log Look-up
Quiet Operation
The TM-300 is well suited for busy office environments as it is 60% quieter than previous imagePROGRAF printers and offers less distraction in the workplace.
Operational panel
The TM-300 features a 3″ color touchscreen operation panel making it easy to view printer information as well as perform simple operations.
Small Footprint
A good fit for small offices, the compact TM-300 has the smallest footprint for a 36-inch large format aqueous inkjet printer.
WiFi Compatible
Printing jobs quickly is critical on the work site and in the office. The Wi-Fi connectivity can transfer technical drawing files and help speed up your workflow – perfect for high-volume printing. No Wi-Fi router is needed, which can provide greater freedom during installation.
Print Head PF-06
The Canon imagePROGRAF TM-300’s 6-channel PF-06 Print Head is engineered to work with the printer’s high-speed carriage and high-frequency ink ejection to help facilitate fast printing. This printer boasts Canon’s print-head technology that lays down ink with outstanding speed and accuracy. The PF-06 print head incorporates a nozzle orifice shape to help minimize mist spray, producing clean lines and text. The high-precision, high-density print head, with a total of 15,360 nozzles, lays down 5 picoliter-size ink droplets that help produce sharp detail and excellent image quality. The result is consistently accurate 2400 x 1200 dpi output (max.) with fine lines that are accurate to ±0.10% and as thin as 0.02mm.
Sub Tank System

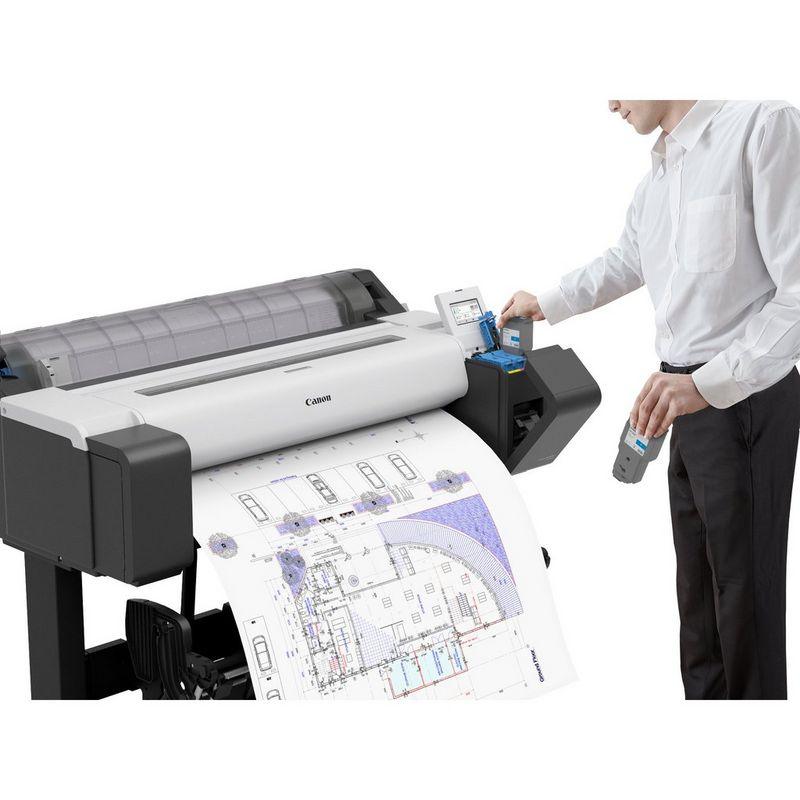

The Sub-Ink Tank System allows virtually all of the available ink in a tank to be used before having to replace it, helping to eliminate wasted ink. The empty tanks can also be replaced on-the-fly without stopping the printer. This is extremely useful during your long print jobs.
Software
TM Unified Printer Driver 4
The TM Unified Printer Driver allows users to print to any imagePROGRAF TM Series device, without the need to install additional drivers for each model. This helps make it a hassle-free installation process for multiple devices within the same environment.
The Windows® driver and Macintosh® driver incorporate simplified page setup options, one-touch borderless printing, expanded color settings, and much more into a printer driver that is intuitive and easy-to-operate while still giving even the most advanced users the tools needed to help stay productive.
Direct print & Share5
Sharing ideas has never been easier with Canon’s Direct Print & Share software. Direct Print and Share is a cloud portal and batch printing solution that helps you to expand your printing workflow. This software allows you to upload documents to your cloud account using any WebDAV compliant cloud service, and print the uploaded documents from almost anywhere. Easily share and/or print .cpfx PosterArtist, PDF, TIFF, JPEG, and HP-GL/2 files, through the user-friendly interface. In addition, you can set-up hot folders on your desktop by clicking the Shortcut Print feature. Then drag and drop the files you wish to print into these folders and the job will start automatically. You can even set up multiple folders, each with their own customized settings, allowing for multiple jobs to be run with ease. Thumbnail previews of multipage images and multipage printing of PDFs can also be done with this software.
Free Layouts Plus
New! Nest, tile and create custom layouts before printing your files with this print utility. Use the plug-in feature to print directly from Microsoft Office programs.
Accounting Manager
Accounting Manager software serves as a powerful feature that can help users accurately manage printing costs and other information that is increasingly important in today’s economic environment.
With the Accounting Manager software you can track how much ink and paper is being consumed when printing in large format jobs. Costs can be assigned to ink and paper to determine expenses based on your own “Cost of Goods”. Each individual ink tank and each paper type can have its own cost associated to it. The user can also input a variable cost that will be added to the total of the print cost. The data is exportable to a .csv format for Microsoft Excel® so the data can be used for billing purposes. This feature will allow you to determine the cost of each print based on your actual cost.
PosterArtist Lite
Canon’s included PosterArtist Lite poster creation software gives users the ability to quickly and easily create professional large format prints and now supports the creation of multilingual posters and tiling! Users simply follow the program’s four (4) easy steps to create posters that can be used in applications such as office Presentations, Trade shows, Retail Signage, and much, much more. The PosterArtist QuickCopy* feature provides an easy solution for a CanoScan desktop scanner to be used as a copier, making letter-size flyers and documents into full-size posters with a touch of a button.
* Compatible with PosterArtist and PosterArtist Lite
AutoCad Optimized Printer Driver
This specialized driver is compatible with a variety of AutoCAD software products and helps enable optimal printing productivity and reliability from the AutoCAD software. Through this module, the processing and printing time associated with printing AutoCAD files to the imagePROGRAF printer is decreased to approximately one-third of the time associated with printing AutoCAD files through the previous Canon HDI Driver! The module also has a user-friendly interface that includes familiar features such as free layout, test printing, and 1200 dpi rendering. This module is automatically loaded when printing is attempted from AutoCAD, helping to ensure a smooth workflow with optimal printing results each time.
Device Management Console
This software allows users to continually monitor information such as the printer status and colors being used to print. It also allows printer administrators to centrally control multiple networked printers at once. This utility software displays the acquired printer information in a neat list for easy visibility.
Printer administrators can be notified via email when an error or warning occurs. No more hassles to get to an installation site of a printer to check on the amount of ink remaining. Printer administrators can now simply check the amount of consumables remaining for networked printers by operating DMC software from their own personal computer. You can monitor the status of up to 50 TM Series printers!
Media Configuration Tool
Manage, update and arrange media information in the operation panel and printer driver.
Apple AirPrint 6
The TM Series supports Apple AirPrint, Apple’s future standard output process. This application allows users to output from various applications on mobile devices, without specialized drivers and output applications. There are currently no restrictions on file types, so it is now easier than ever to print full quality photos and documents from most Apple products including your Mac®, iPhone®, iPad®, or iPod®. It also features easy discovery, automatic media selection, and enterprise-class finishing options.
Canon Print Service
This software allows users to print from the menus of applications that support Android’s printing subsystem. Print PDF files wirelessly via a mobile application for Android tablets and smart phones. In just a few simple steps you can log into the Canon Print Service application, create the JPEG file, send the JPEG file to a TM Series large-format printer and select the ‘JPEG direct print’ function to print your document. Simple and easy to do on-the-go!
